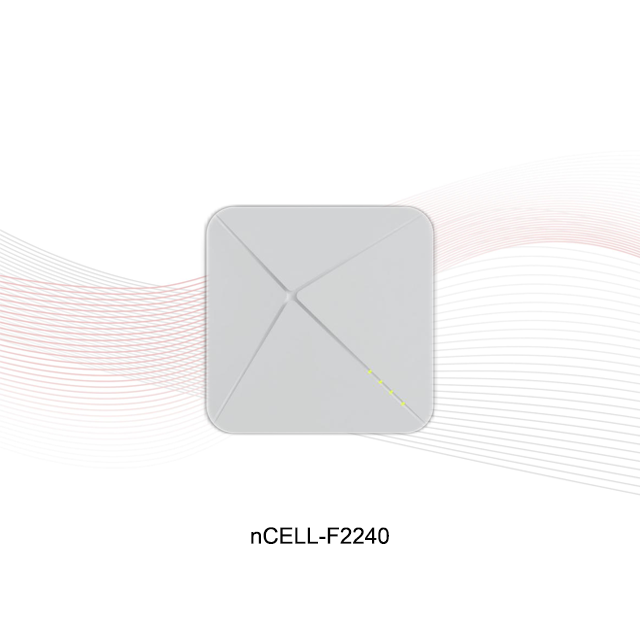

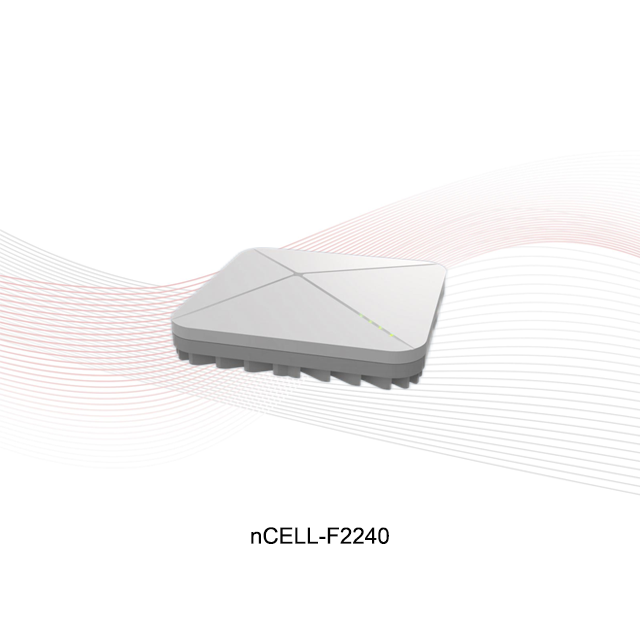

5G NR Femtocell - nCELL-F2240

Share to:
The nCELL-F2240 from BTI is an enterprise-level 5G integrated Femtocell applying 5G NR technology. The product connects to the backbone network through wired backhaul and provides 5G access for terminals. It supports the transmission of voice and data with indoor wireless broadband coverage.
Availability:

   Description

The nCELL-F2240 from BTI is an enterprise-level 5G integrated Femtocell applying 5G NR technology. The product connects to the backbone network through wired backhaul and provides 5G access for terminals. It supports the transmission of voice and data with indoor wireless broadband coverage.


   Key Features

Superb Performance

  • 5G SA

  • Support N41/48/77/78/79

  • Supports 2x2 MIMO

  • Supports 40/60/100Mhz

  • Max 128 RRC connected users


Peak data rate (NR 100MHz)

  • DL 800Mbps (256QAM,7D3U, 5ms)

  • UL 400Mbps (64QAM,3U1D, 2.5ms)


Plug & Play

  • All IP based backhaul, including RJ45 Ethernet, SFP

  • PoE supported

  • 35w Lower power consumption to reduce OPEX


   Download


 5G NR Femtocell - nCELL-F2240 Datasheet (August 2022): BTI_nCELL-F_V1.4.pdf
