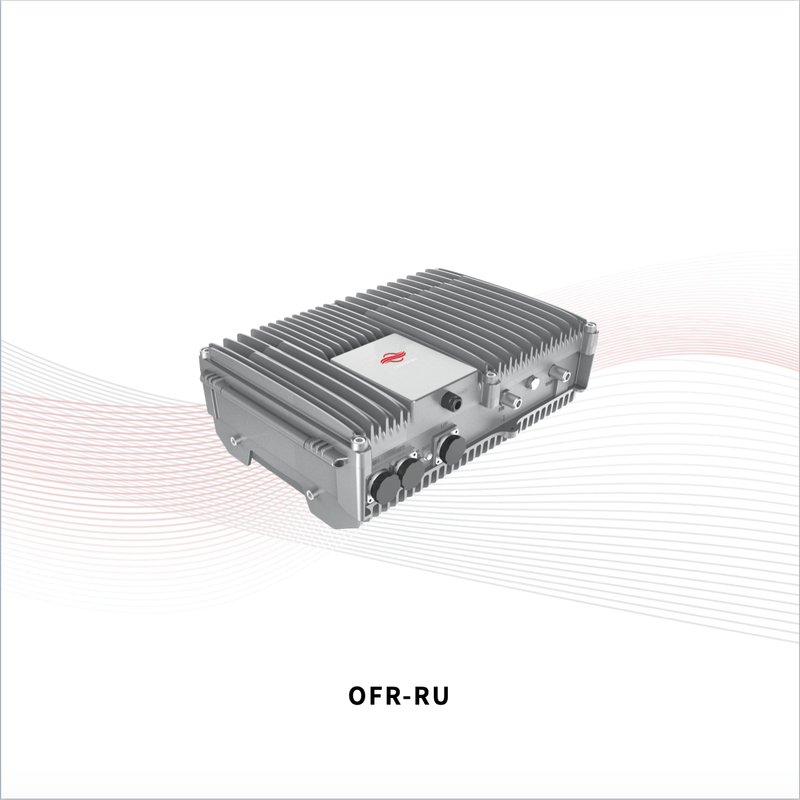

CrossFire OFR

   Description

CrossFire OFR is a digital transport platform supporting cellular on fibre optic cable using the CPRI protocol. The power amplifier technology adopts Digital Pre-Distortion, allowing for a significant improvement in power consumption compared with analogue technology. This platform support GSM, CDMA, UMTS, TD-LTE, LTE and NB-IoT, it’s ideal for single-operator single-band deployments of cellular services into large coverage areas.

   Advantage

Cost-effective

Benefit from the patented CFR&DPD digital signal process, it adopts Doherty PA technology with higher efficiency which will lower the OPEX. Adopt narrow bandwidth chipsets to decrease the CAPEX.

Reliable

Benefit from the high efficiency, it adopts passive cooling, no Fan needed; Benefit from the transmission in digital, it supports fiber loop back function for redundancy.

Easy Deployment

Deploy quickly with automated commissioning. Identify issues immediately with monitoring and alarming features. Can be accessed wired or wireless.

   Features

●  700 to 2700 MHz Operating Frequency

●  1 x 3GPP Bands per Remote

●  46dBm Output Power

●  Up to 40MHz IBW

●  Support 1T1R or 1T2R

●  Duplex Output

●  Optical cascading of RU’s

●  IP65
