LTE Indoor CPE Series
Frequency Bands
-
- Support European, Asian, and North American LTE bands
Key Features and Highlights
-
- GCT chip solution
-
CAT6/12
-
Supports Wi-Fi 5 (802.11ac)
-
- Support two Gigabit Ethernet ports
-
- Support VoLTE or VoIP voice (optional)
-
- Powerful software features, supporting all the router features
-
- Web, TR069 and SNMP based device management
|
Item |
CP860 |
CP660 |
|
|
LTE Standard |
3GPP Release 12, CAT12 |
3GPP Release 10/11, CAT6 |
|
|
Frequency Bands* |
B1/3/7/8/20/(28)/38/(40)/41/42/43/48 B2/4/5/8/12/14/17/25/26/38/41/42/43/48/66 |
B1/3/7/8/20/(28)/38/(40)/41/42/43/48 B2/4/5/8/12/14/17/25/26/38/41/42/43/48/66 |
|
|

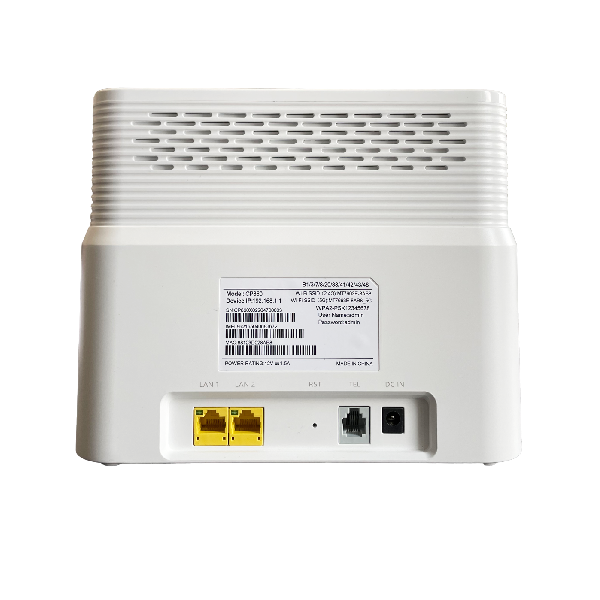

Ports |
2 Gb RJ45 LAN port 1 RJ11 1 USIM/ SIM (3FF) |
2 Gb RJ45 LAN port 1 RJ11 1 USIM/ SIM (3FF) |
|
|
LED |
8 LED indicators (PWR, Wi-Fi, TEL, NET, RF Signal x 4) |
8 LED indicators (PWR, Wi-Fi, TEL, NET, RF Signal x 4) |
|
|
Physical Specifications |
Dimensions |
204.5 x 169 x 60 mm | 8.05 x 6.65 x 2.36 in |
204.5 x 169 x 60 mm | 8.05 x 6.65 x 2.36 in |
|
Weight |
< 500 g | 1.1 lbs |
< 500 g | 1.1 lbs |
|
|
Power Adapter |
Input: AC 100 ~ 240V |
Input: AC 100 ~ 240V |
|
|
Wi-Fi |
Wi-Fi frequency |
2.4 GHz/ 5 GHz |
2.4 GHz/ 5 GHz |
|
Wi-Fi output power |
2.4 GHz: 19dBm @ 11Mbps 5 GHz: 16dBm @ 54Mbps |
2.4 GHz: 19dBm @ 11Mbps 5 GHz: 16dBm @ 54Mbps |
|
|
Wi-Fi channel BW |
20 MHz & 40 MHz & 80 MHz |
20 MHz & 40 MHz & 80 MHz |
|
|
Wi-Fi antenna gain |
2.4 GHz: 2 dBi 5 GHz: 3 dBi |
2.4 GHz: 2 dBi 5 GHz: 3 dBi |
|
