LTE Industrial Outdoor CPE Series

The industrial Outdoor CPE products provide sustainable and durable LTE service with higher data transmission speed for video and other bandwidth-intensive applications. The products have special anti-vibration features, which qualify them for extreme environments where they are able to work in a temperature range from -40°C to 70°C.

Applications:
4G

Outdoor Scenarios

Railway

Transportation

Manufacturing

Mining

Oil and Gas, etc.

Superb Performance

high-speed data transmission.

Customization

Support customization to meet your various needs.

Security

Security firewall, Mac/IP/URL filtering.

Smart Management

Web, TR069 & SNMP based device management

Key Features

Specifications

Files

Frequency Bands

- support European, Asian, and North American LTE bands

Key Features and Highlights

- GCT chip solution
CAT12/16·
Supports Wi-Fi 5/Wi-Fi 6 (802.11ac/ax) ·
- Support two Gigabit Ethernet ports
Powerful software features, supporting all the router features
- Web, TR069 and SNMP based device management

Specification

Item		CP880I	CP980I
Technology		LTE CAT12	LTE CAT16
Frequency Bands*		B1/3 B2/4/5/8/12/13/14/25/26/38/41/42/43/48/53/66 B46/240	B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B38/B39/ B40/B41/B42/B43/B46(LAA)/B48(CBRS)/B66

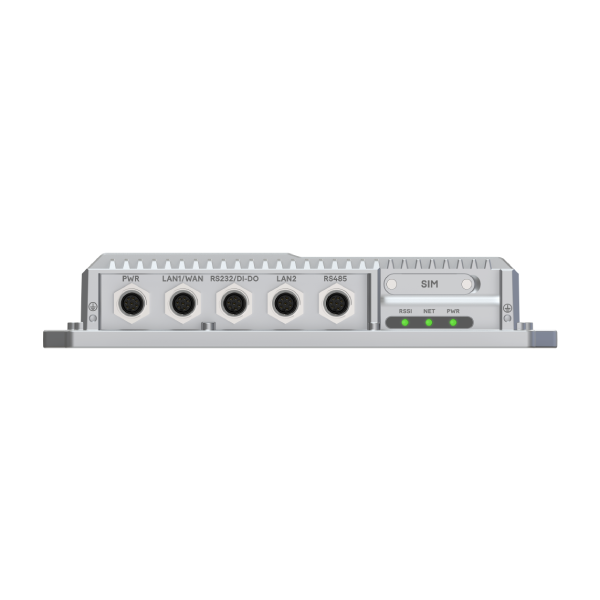

Fixed Interfaces		2 x M12 for 10/100/1000 Mbps compatible GE 1 x M12 for RS232 + 2 x DI + 2 x DO 1 x M12 for RS485 2 x Nano SIM slot (4FF, DSSS)	1 x M12 for Power supply 1 x M12 for 10/100/1000Mbps compatible GE port 1 x M12 for 2.5GHz GE port 1 x M12 for RS232 + 2 x DI + 2 x DO 1 x M12 for RS485 2 x Nano SIM Slot

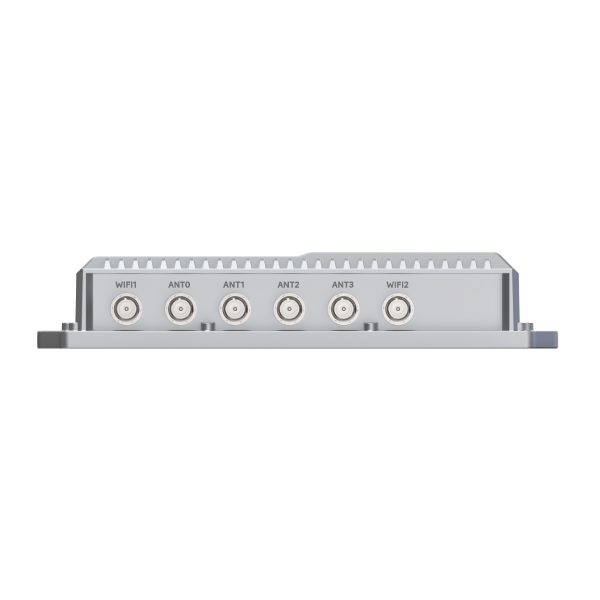

Antenna Ports		2 x TNC female for cellular antennas 1 x TNC female for GNSS antenna 2 x TNC female for Wi-Fi antennas	3 x TNC female for LTE antennas 1 x TNC female for LTE&GNSS antenna 2 x TNC female for Wi-Fi antennas
LED		PWR, NET, Signal	PWR/NET/RSSI LED indicates power/network/signal status
Physical Specifications	Dimensions	290 x 189 x 56 mm \| 11.42 x 7.44 x 2.20 in	290 x 189 x 56 mm \| 11.42 x 7.44 x 2.20 in
	Weight	< 2500 g \| 5.51 lbs	≈ 2kg \| 4.41 lbs
	Power Adapter	9V - 36V DC	9V - 36V DC
Operating Environment	Temperature	Operating: -40 ℃ ~ 70 ℃ \| -40 °F ~ 158 °F Storage: -40 ℃ ~ 85 ℃ \| -40 °F ~ 185 °F	Operating: -40 ℃ ~ 70 ℃ \| -40 °F ~ 158 °F Storage: -40 ℃ ~ 85 ℃ \| -40 °F ~ 185 °F
Operating Environment	Humidity	Operating: 10 ~ 90% Storage: 5 ~ 95%	Operating: 10 ~ 90% Storage: 5 ~ 95%

File
