CrossFire CPOI

CrossFire CPOI is a modular rack mounted Point of Interconnect (POI), designed to provide RF attenuation and/or splitting of RF signal from Radio Base Stations. The solution supports up to 8 cards to be fitted into the POI sub-rack, with each card offering either attenuation of two RF services or 2 way splitting of six RF services. In a fully utilized sub-rack it is possible to attenuate 16 inputs with attenuation options from 10dB to 40dB for 16 outputs, or 12 inputs with both attenuation and splitting for 24 outputs. The product is an ideal compliment for the CrossFire Access Unit.

Key Features

Files

Description

CrossFire CPOI is a modular rack mounted Point of Interconnect (POI), designed to provide RF attenuation and/or splitting of RF signal from Radio Base Stations. The solution supports up to 8 cards to be fitted into the POI sub-rack, with each card offering either attenuation of two RF services or 2 way splitting of six RF services. In a fully utilized sub-rack it is possible to attenuate 16 inputs with attenuation options from 10dB to 40dB for 16 outputs, or 12 inputs with both attenuation and splitting for 24 outputs. The product is an ideal compliment for the CrossFire Access Unit.

Advantage

Low PIM

Adopts high quality materials and strict process control to ensure low levels of passive inter-modulation.

Wide Spectrum

Cover the frequency range from 380-6000MHz, customization is optional.

Future Proof

Modular design, provides the ability to add additional bands, sectors, MIMO - "plug and play".

Features

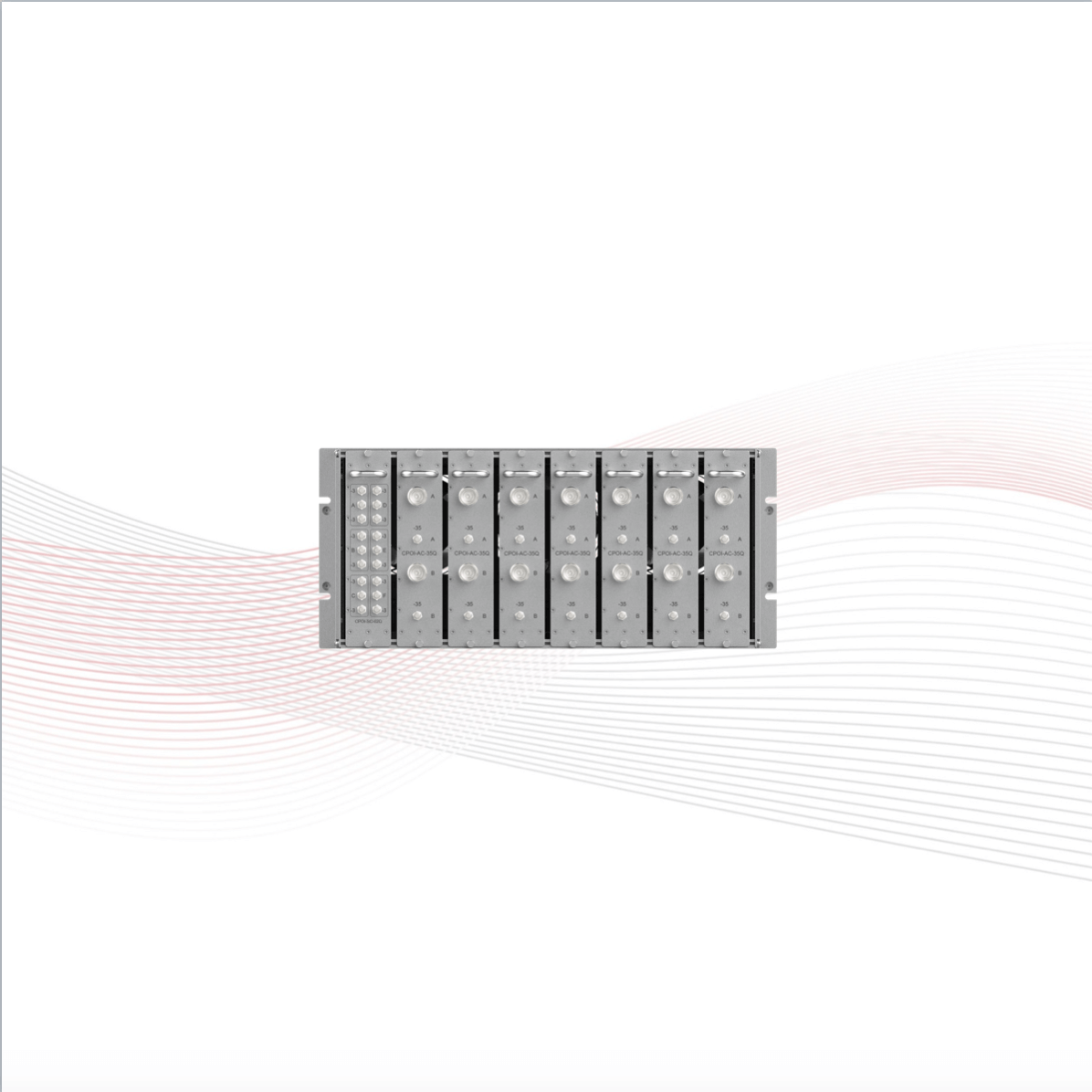

5U 19” Sub-Rack Modular Architecture
Up to 8 wideband low-PIM Attenuation Cards
2 x RF services per Attenuation Card
6 x RF services per 2 Ways Splitter Card

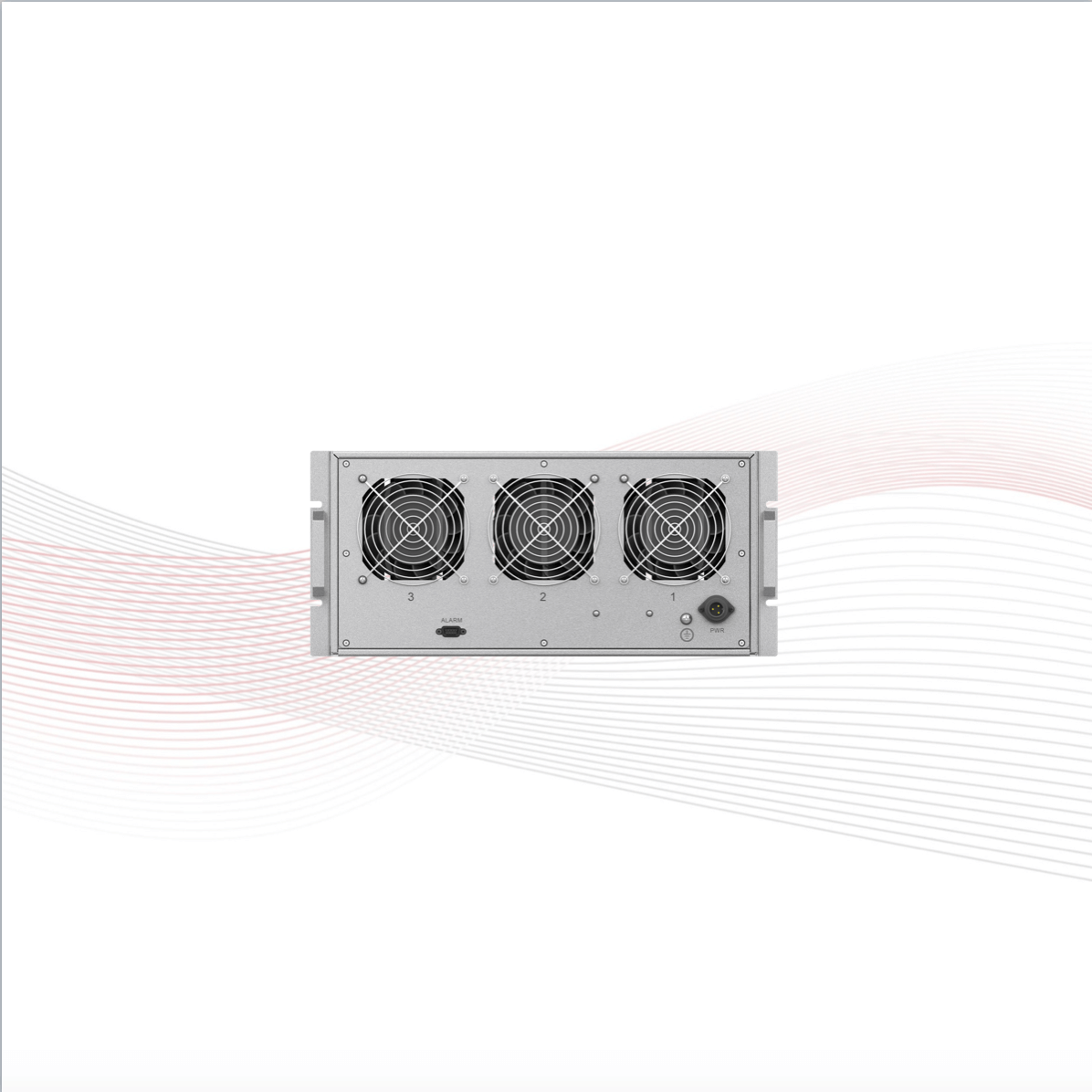

Redundant fans for high-reliability and heat extraction
AC or DC Powering Options
