N3RU-E

8*25dBm

1 Band 8T8R/2 Bands 4T4R/4 Bands 2T2R/8 Bands 1T1R

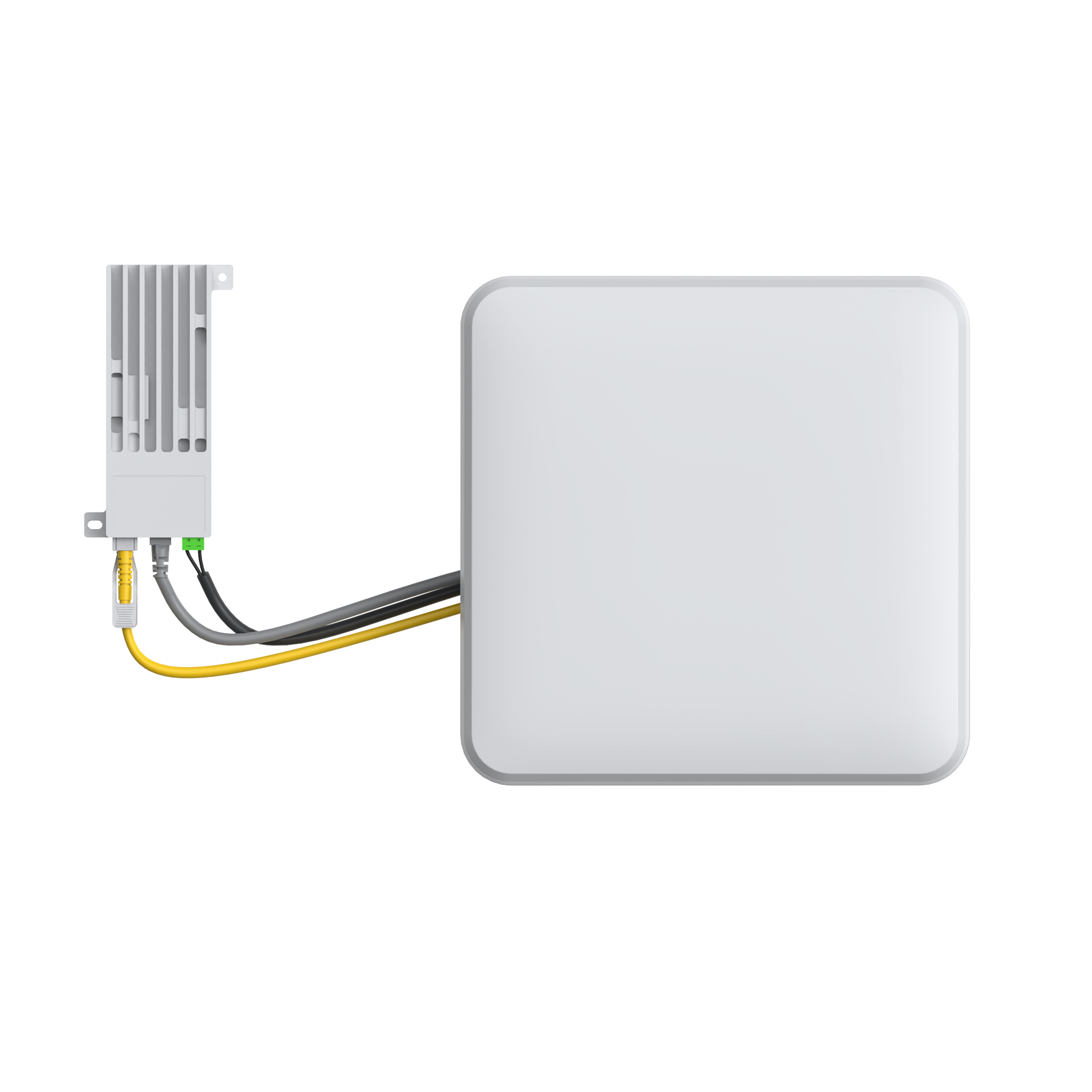

N3RU-E is the micro-power Ethernet remote unit. The unit connects to the E3-E via Ethernet cables, converts the digital signals from the E3-E into RF signals, and then transmits them through antennas. By using Ethernet cables for transmission, it addresses the issue of lacking fiber optic resources in older facilities, aiding in their optimization and upgrade. One N3RU-E supports 8 channels, with each channel capable of supporting a 300MHz bandwidth. It can support up to 6 levels of device cascading, supports all frequency bands, and offers flexible networking options. There are two types available: one with built-in antennas and one with external antennas. Additionally, the system architecture using N3RU-E can be upgraded to support O-RAN.

Key Features

Features

Support 600MHz -4200MHz, 8T8R
8 RF Channels per device
Up to 300MHz IBW per channel
Up to 25dBm Output Power
Support Band and Channel Selective
Support up to 6 levels cascade
- Internal Antenna type / External Antenna type
