5G Industrial Outdoor CPE

The CPX80I from BTI WIRELESS is a 5G Industrial Outdoor CPE. It supports various 4G/5G spectrums and ultra-high speed in a ruggedized form factor. This product offers industrial-grade environmental qualifications while providing high speed data services for the bandwidth-intensive applications. Up to IP67 with water-proof, shock-resistant, and lightning-proof, combined to ensure the quality of wireless communication under different outdoor

Applications:
5G

Outdoor Scenario

Private Network

Industry

Superb Performance

Gigabit-level broadband wireless access, high-speed data transmission.

Customization

Support customization to meet your various needs.

Security

Security firewall, Mac/IP/URL filtering.

Smart Management

Web, TR069 & SNMP based device management

Key Features

Specifications

Files

Frequency Bands

- Global/CBRS bands supported

Key Features and Highlights

- Qualcomm SDX55 chipset solution
- 5G NR and LTE-A CAT20 dual mode
- Supports both SA and NSA
- Ruggedized and anti-vibration design
Powerful software features

，supporting all router features

·
S
- upports Wi-Fi 6
- Web, TR069 and SNMP based device management

Supports 2.5G WAN/LAN & 1G LAN and diverse industry interfaces

1. - - IP67 rating for outdoor environment

Specification

Item	5G Industrial Outdoor CPE - CPX80I
Technology	5GNR/LTE/WCDMA
TRx Configuration1	2T4R
Frequency Bands2	5GNR	N1/N2/N3/N5/N7/N8/N12/N20/N28/N38/N40/N41/N48/N66/N71/ N77/N78/N79
	LTE	B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/ B29/B30/B32/B34/B38/B39/B40/B41/B42/B43/B46(LAA)/B48/B66/B71
	WCDMA	B1/B2/B3/B4/B5/B6/B8/B19

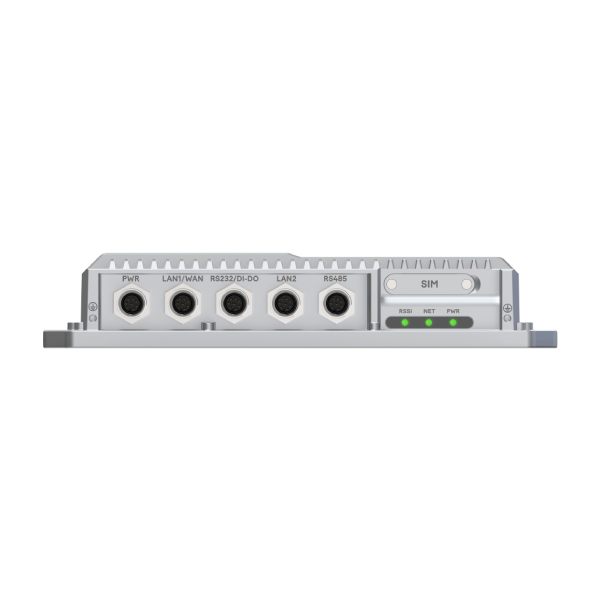

External Port	1 x M12 for power supply 1 x M12 for 2.5G WAN/LAN + 1G LAN 2 x Nano SIM slot 1 x M12 for RS232 + 2 x DI + 2 x DO 1 x M12 for RS485

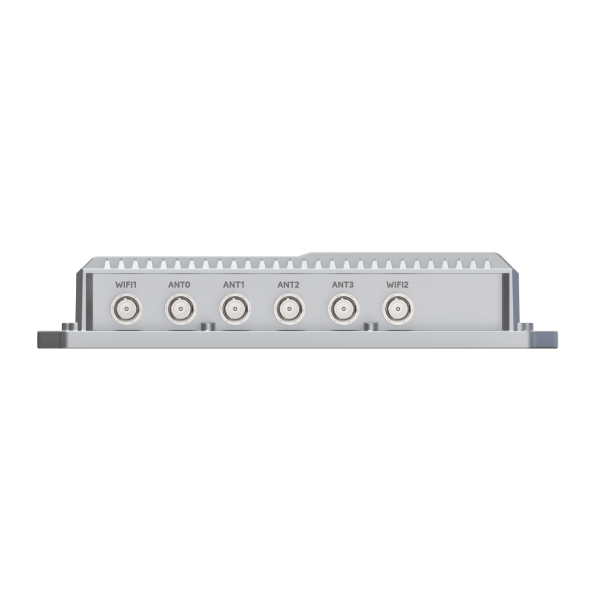

Antenna	3 x TNC connector for NR&LTE antenna 1 x TNC connector for NR&LTE&GNSS antenna 2 x TNC connector for 2.4&5GHz Wi-Fi antenna
LED	1 x power indicator 1 x RSSI indicator 1 x network status indicator
Power Supply	DC 24V
Dimension (H x W x D)	288 x 288 x 82 mm \| 11.34 x 11.34 x 3.23 in
Weight	< 2.5 kg \| 5.5 lbs
