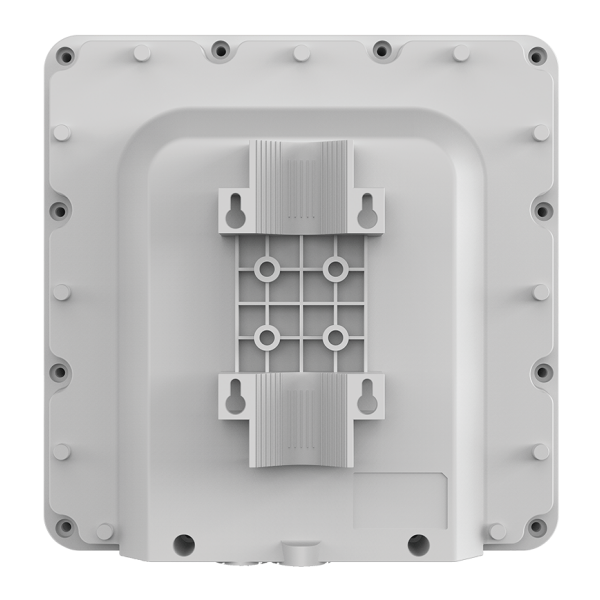

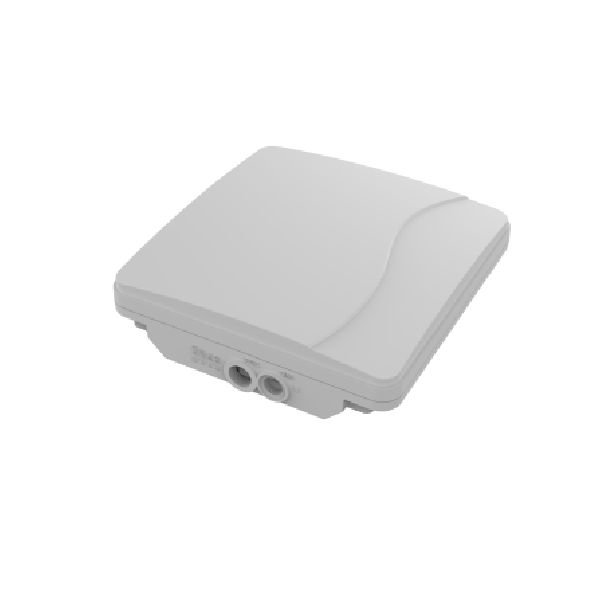

LTE Outdoor CPE Series

The CP680 and CP880 from BTI Wireless are outdoor LTE CPE products. The products provide a high throughput data transmission network for residential, commercial and enterprise users. Customers enjoy an easy plug & play broadband access solution and large area coverage for various network service scenarios.

Applications:
LTE

Indoor Scenario

Superb Performance

high-speed data transmission.

Customization

Support customization to meet your various needs.

Security

Security firewall, Mac/IP/URL filtering.

Smart Management

Web, TR069 & SNMP based device management

Key Features

Specifications

Files

Frequency Bands

- support European, Asian, and North American LTE bands

Key Features and Highlights

- GCT chip solution
- CAT6/12
- Supports PoE power supply
Support Gigabit Ethernet ports ·
Powerful software features, supporting all the router features ·
- Web, TR069 and SNMP based device management
- Support IP67

Specification

Item		CP880	CP680
LTE Standard		3GPP Release 12, CAT12	3GPP Release 10/11, CAT6
Frequency Bands*		B1/3/7/8/20/(28)/38/(40)/41/42/43/48 B2/4/5/8/12/14/17/25/26/38/41/42/43/48/66	B1/3/7/8/(17)/20/(28)/38/(40)/41/42/ 43/48 B2/4/5/8/12/14/17/25/26/38/41/42/43/48/66
Ports		1POE, 1SIM	1POE, 1SIM
LED		Power, SIM, Internet, Signal	Power, SIM, Internet, Signal
Physical Specifications	Dimensions	288 x 288 x 82 mm \| 11.34 x 11.34 x 3.23 in	288 x 288 x 82 mm \| 11.34 x 11.34 x 3.23 in
	Weight ODU	< 2 kg \| 4.41 lbs	< 2 kg \| 4.41 lbs
	Power Adapter	Input: AC 90 ~ 240V Output: DC 24V/ 0.5A	Input: AC 90 ~ 240V Output: DC 24V/ 0.5A
Operating Environment	Temperature	Operating: -30 ℃ ~ 60 ℃ \| -22 °F ~ 140 °F Storage: -40 ℃ ~ 85 ℃ \| -40 °F ~ 185 °F	Operating: -30 ℃ ~ 60 ℃ \| -22 °F ~ 140 °F Storage: -40 ℃ ~ 85 ℃ \| -40 °F ~ 185 °F
Operating Environment	Humidity	Operating: 10 ~ 90% Storage: 5 ~ 95%	Operating: 10 ~ 90% Storage: 5 ~ 95%
Peak Throughput	FDD	DL 800 Mbps (4 CC 256 QAM) UL 150 Mbps (4 CC 256 QAM)	DL 300 Mbps (2 CC 256 QAM) UL 75 Mbps (2 CC 256 QAM)
Peak Throughput	TDD	DL 560 Mbps (configuration 2:7) UL 30 Mbps (configuration 2:7)	DL 220 Mbps (configuration 2:7) UL 50 Mbps (configuration 2:7)
